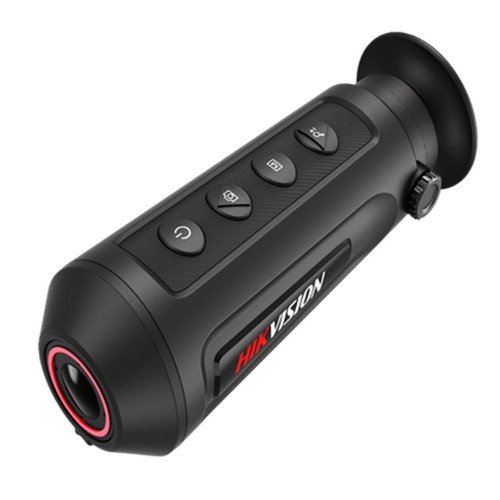

Hikmicro Handheld Thermal Monocular Camera Lynx L15 (DS-2TS03-15XF/W)

Item number: 50-2-006

Category: HIK

1.190,00 €

including 19% VAT. , plus shipping

Recommended retail price: 1.190,00 €
Available now!

Shipping time: 1 workdays

Hikvision handheld thermal monocular camera Lynx L15 (DS-2TS03-15XF/W) is equipped with a 384 × 288 infrared detector and a 720 × 540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Key Features

384 × 288 resolution, high sensitivity detector
Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
720 × 540 resolution 0.2-inch LCOS display
Built-in rechargeable lithium battery
Up to 7 hours continuous running
Wi-Fi hot spot
Type-C Interface

Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Pixel Interval :17 µm
Response Waveband: 8 µm to 14 µm
NETD: less than 35 mk (@25°C), F#=1.0
Lens (Focal Length): 15 mm
Field of View: 24.6° × 18.5° (H × V)
Digital Zoom: 1 ×, 2 ×, 4 ×
Aperture: F1.0
Magnification: 0.6 to 2.4

Image Display
Monitor:  0.2 inch, LCOS, 720 × 540
FFC (Flat Field Correction): Auto, Manual, External Correction
Palettes: Black Hot, White Hot, Red Hot, Fusion
Frame Frequency: 50 Hz
Smart Function: Highest Temperature Spot
Tracking: Yes
Wi-Fi Hot Spot: Yes
Standby Mode: Yes

Storage: Built-in memory module (8 GB)
Record Video: Yes
Capture Snapshot: Yes

Power Supply
Battery Type: Lithium battery
Battery Operating Time:
7 hours continuous running with Wi-Fi hot spot function off (@25°C)
5.5 hours continuous running with Wi-Fi hot spot function on (@25°C)
Battery Capacity Display: Yes

Power: 5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature :-20 °C to 55 °C (-4 °F to 131 °F)
Protection Level: IP67
Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight: 270 g (0.60 lb)

Shipping weight: 1,00 Kg
